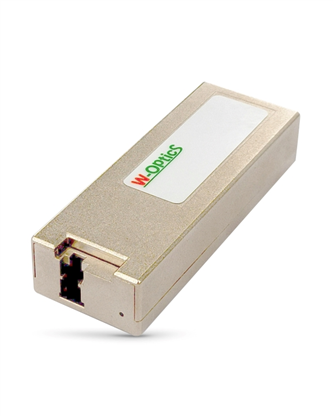

• 4CH/1LC Optical Extender

4CH/1LC Optical Extender


Features

. Support high speed TMDS HDMI signal transmission
. Support high speed lane DP signal transmission
. Support 4 channels 3G-SDI signal
.  Single LC receptacle optical interface
.  Support usage of one Single-Mode or one Multi-Mode Fiber
. Channels maximum data rate : Up to 6 Gbps
.  3.3V Power Supply
. Metal Based Enclosure for Better Heat Dissipation
. Support Hot Pluggable : Easy to Installation , Upgrade and Replacement


Description

The Optical Extender Module is designed to transmit and receive high speed video data. The module is capable of sending total bandwidth of 19Gbps through duplex single mode or multi-mode fiber. The module integrates circuitries including three 6Gbps channels and one 1G channel with reaching distance of over 1000 meters.

In addition, this optical extender is designed to be used in Pro AV application. It contains four high speed channels to acommandate video signal such as DVI, HDMI, .. etc.
