Description

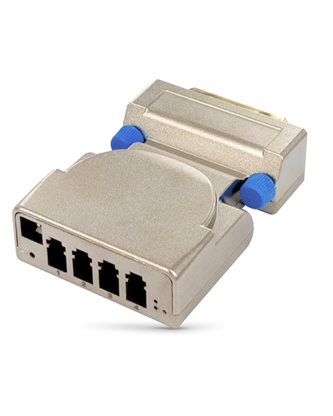

The WDx-1804 Optical DVI Extender with DVI-D 18+1 connector is designed to transmit the DVI signals to long distance through four fibers. Our Fiber Optic Extender can be used not only multi-mode fiber but also single-mode fiber as system’s requirement. The EDID learning technology makes DVI Fiber Extender more flexible and easier to installation for any variable resolution display. This DVI Fiber Optic Video Extender integrates all LED indicators, power supply input and Self-EDID button hole on the front panel. It will be easy and convenient to indicate the link status and to operate module.

. All Control Panel & Indicator LED in The Front (W-Optics Patented)

. Support Single & Multi Mode  Application

. Reserved Firmware Upgraded Function

. Low Power Consumption

. Support EDID Learning

. Voice Embedded for HDMI Application

. Totally Metal Enclosure

Customised Designs are Available

1. Customized Housing with Specified Appearance Design

2. Diverse Color or Coating for  the Housing

Table for DVI Extender WDx-180x Products

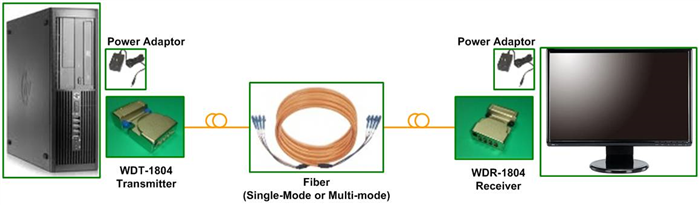

Cable Connections for Daily Application
