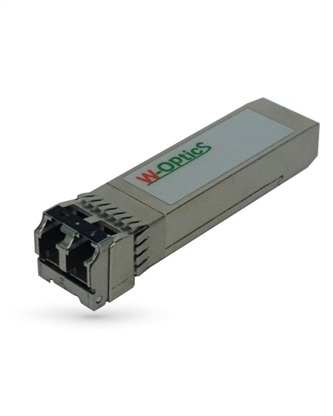

SFP+ Series


Features

. 10Gb/s Serial Optical Interface Compliant to IEEE 802.3ae 10GBASE-SR to ZR

. Electrical Interface Compliant to SFF-8431 Specifications for Enhanced 8.5
  and 10 Gigabit Small Form Factor Pluggable Module “SFP ”

. 10G BASE-SR/SW etc. 10G Ethernet

. SDH(STM64)/SONET(OC-192)

. 2-Wire Interface for Management Specifications Compliant with SFF 8472
  Digital Diagnostic Monitoring Interface for Optical Transceivers

. Low Power Consumption < 0.8W for SR, 1.2 for LR, 1.6 for ER

. Advanced Firmware Allow Customer System Encryption Information to be
  Stored in Transceiver

. Metal Enclosure and Low Power Consumption

. RoHs Compliant


Description

The series of transceivers comply with SFF-8431 for Small Form Factor
Pluggable (SFP+). It is designed for SM or MM fiber application with high
performance and cost-effective. Each module consists of the high-speed laser diode
and photo diode as a light source and a detector. An EEPROM contained the
detailed product information for the host equipment is accessed by the 2-wire serial
CMOS EEPROM protocol. It complies with the laser class 1 products and EN60825-1.



Table for SFP+ Products

Form Factor Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating Temperature
SFP+ SPA-xFY1-211 10 300m 850nm
VCSEL		 850nm
PIN		 -1~-6.5 -11.1 CT/IT
SFP+ SPB-xFF1-211 10 10km 1310nm
DFB		 1310nm
PIN		 +0.5~-8.2  -12.6 CT/IT
SFP+ SPH-xFJ1-211 10 40km 1550nm
EML		 1550nm
PIN		 -4~+4  -15.8 CT
SFP+ SPG-xFP1-211 10 80km 1550nm
EML		 1550nm
APD		 0~+4  -24 CT
CT: 0~70°C, IT: -40~+85°C
