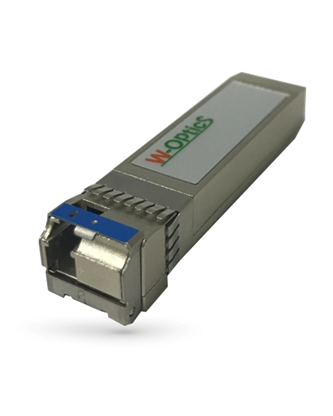

Bi-Directional SFP


Features

. Standard Small Form Factor Pluggable Package MSA Compliant

. Simplex LC Receptacle Optical Interface

. 2 Wavelengths in One Multi-Mode fiber

. Integrated WDM Filter for Transmitting and Receiving Signal

. Single 3.3 V Power Supply

. Differential LVPECL Data Input and Output

. LVTTL Loss of Signal

. Serial ID through I2C Interface

. Metal Enclosure and Low Power Consumption

. RoHs Compliant




Description

This transceiver complies with Small Form Factor Pluggable (SFP) MSA. It  is a bidirectional single fiber optical module that designed for point-to-point application. The high-speed laser diode and photo diode are provided as a light source and a detector. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies Class 1 laser products and EN60825-1.



Table for BiDi SFP Products

Form Factor Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating  Temperature
BiDi SFP SSH-xAB1-x11 1.25 300m 1310nm
FP		 1550nm
PIN		 -3 ~ -9 -21 CT/IT
BiDi SFP SSJ-xAB1-x11 1.25 300m 1550nm
FP		 1310nm
PIN		 -3 ~ -9 -21 CT/IT
BiDi SFP SSH-xAGx-x11 1.25 20km 1310nm
FP		 1550nm
PIN		 -2 ~ -8 -23 CT/IT
BiDi SFP SSL-xAGx-x11 1.25 20km 1550
DFB		 1310
PIN		 -2 ~ -8 -23 CT/IT
BiDi SFP SSV-xAGx-x11 1.25 20km 1310nm
FP		 1490nm
PIN		 -2 ~ -8 -23 CT/IT
BiDi SFP SSM-xAGx-x11 1.25 20km 1490nm
DFB		 1310nm
PIN		 -2 ~ -8 -23 CT/IT
BiDi SFP SSK-xAJx-x11 1.25 40km 1310nm
DFB		 1550nm
PIN		 +2 ~ -3 -23 CT/IT
BiDi SFP SSL-xAJx-x11 1.25 40km 1550nm
DFB		 1310nm
PIN		 +2 ~ -3 -23 CT/IT
BiDi SFP SSU-xAJx-x11 1.25 40km 1310nm
DFB		 1490nm
PIN		 +2 ~ -3 -23 CT/IT
BiDi SFP SSM-xAJx-x11 1.25 40km 1490nm
DFB		 1310nm
PIN		 +2 ~ -3 -23 CT/IT
BiDi SFP SSK-xALx-x11 1.25 60km 1310nm
DFB		 1550nm
PIN		 +5 ~ 0 -25 CT/IT
BiDi SFP SSL-xALx-x11 1.25 60km 1550nm
DFB		 1310nm
PIN		 +4 ~ -2 -25 CT/IT
BiDi SFP SSU-xALx-x11 1.25 60km 1310nm
DFB		 1490nm
PIN		 +5 ~ 0 -25 CT/IT
BiDi SFP SSM-xALx-x11 1.25 60km 1490nm
DFB		 1310nm
PIN		 +4 ~ -2 -25 CT/IT
BiDi SFP SSS-xAPx-x11 1.25 80km 1510nm
DFB		 1570nm
PIN		 +3 ~ -2 -26 CT/IT
BiDi SFP SST-xAPx-x11 1.25 80km 1570nm
DFB		 1510nm
PIN		 +3 ~ -2 -26 CT/IT
BiDi SFP SSW-xASx-x11 1.25 120km 1510nm
DFB		 1570nm
APD		 +3 ~ -2 -33 CT/IT
BiDi SFP SSX-xASx-x11 1.25 120km 1570nm
DFB		 1510nm
APD		 +3 ~ -2 -33 CT/IT
BiDi SFP SSH-xBBx-x11 2.5 300m 1310nm
FP		 1550nm
PIN		 -3 ~ -9 -15 CT/IT
BiDi SFP SSJ-xBBx-x11 2.5 300m 1550nm
FP		 1310nm
PIN		 -3 ~ -9 -15 CT/IT
BiDi SFP SSK-xBGx-x11 2.5 20km 1310nm
DFB		 1550nm
PIN		 0 ~ -5 -18 CT/IT
BiDi SFP SSL-xBGx-x11 2.5 20km 1550nm
DFB		 1310nm
PIN		 0 ~ -5 -18 CT/IT
BiDi SFP SSK-xAJx-x11 2.5 40km 1310nm
DFB		 1550nm
PIN		 +3 ~ -2 -20 CT/IT
BiDi SFP SSL-xAJx-x11 2.5 40km 1550nm
DFB		 1310nm
PIN		 +3 ~ -2 -20 CT/IT
CT: 0~70°C, IT: -40~+85°C
