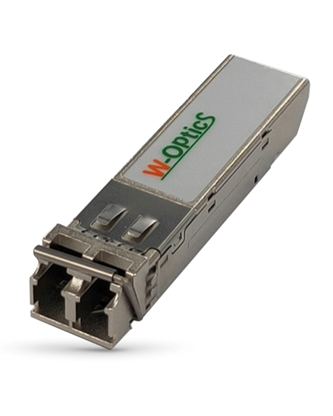

10G CSFP+


Features

. 10G Double Bi-Directional Transceiver

. Channel transmission in current CSFP outline

. Single 3.3 V power supply

. Single fiber full duplex solution

. Integrated WDM filter for 1270nm /1330nm laser diode transmitter/photodiode detector with preamplifier, and vice versa (See ordering information)

. 10G BASE-SR/SW etc. 10G Ethernet

. SDH(STM64)/SONET(OC-192)

. Compact small form factor pluggable MSA compliant

. Standard LC receptacle optical interface

. Hardware TX_fault, LOS and TX_disable function

. RoHS 6 compliant


Description

This Compact Small Form Factor Pluggable (CSFP+) optical transceiver is a Double Bi-Directional Transceiver with a single fiber optical module designed for point-to-point application. There are 2 single fiber duplex transmissions in current SFP form factor. There it could double the port density of current equipment or linecard.



Table for 10G CSFP+ Product

Form Factor Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating Temperature
CSFP+ S2x-xFFx-x11 10 10km 1270/1330nm
DFB		 1270/1330nm
PIN		 -8.2 ~ +0.5 -14.4 CT/IT
CT: 0~70°C, IT: -40~+85°C
