CSFP (Option1/Option2)


Features

. Double Bi-Directional Transceiver

. Channel transmission in current CSFP outline

. Single 3.3 V power supply.

. Single fiber full duplex solution

. Integrated WDM filter for laser diode transmitter/photodiode detector with preamplifier, and vice versa (See ordering information)

. IEEE802.3AH 100BASE-BX, OC-3/STM-1SONET/SDH, 1000BASE-BX (See ordering information)

. Compact small form factor pluggable MSA compliant.

. Standard LC receptacle optical interface

. Hardware TX_fault, LOS and TX_disable function.

. Support Option1 or Option2

. RoHS 6 compliant


Description

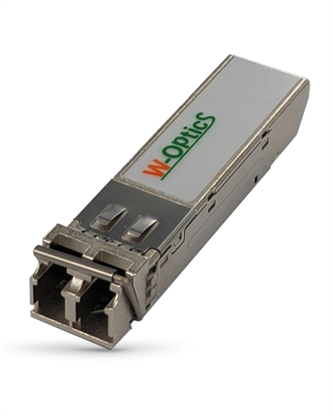

This Compact Small Form Factor Pluggable (CSFP) optical transceiver is a Double Bi-Directional Transceiver with a single fiber optical module designed for point-to-point application. It supports option 1 or option 2 for PIN assignment. There are 2 single fiber duplex transmissions in current SFP form factor. There it could double the port density of current equipment or linecard.

Table for CSFP Products (Opt.1 / Opt.2)

Form Factor Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating  Temperature
CSFP S2x-xAFx-211 1.25 10km 1310nm FP/
1490nm DFB		 1310/1490nm
PIN		 -9 ~ -3 -19 CT/IT
CSFP S2x-xAGx-211 1.25 20km 1310nm FP/
1490nm DFB		 1310/1490nm
PIN		 -8 ~ -3 -20 CT/IT
CSFP S2x-xAJx-211 1.25 40km 1310nm/1490nm/
1550 DFB		 1310nm/1490nm/
1550 PIN		 -6 ~ +2 -25 CT/IT
CT: 0~70°C, IT: -40~+85°C
