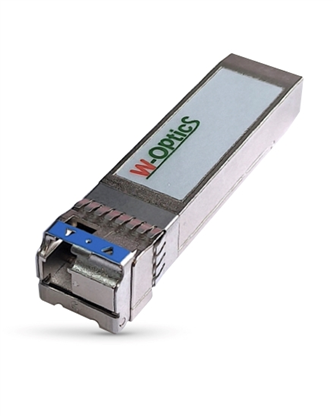

12G-SDI SFP+ T12G/R1G


Features

．Metal Enclosure and Low Power Consumption

．Serial ID through I2C Interface (DDM version)

．Single 3.3 V Power Supply

．Support Gigabit Ethernet Standard ( IEEE802.3Z 1000BASE ) Compliant (Rx)

．Support 12G-SDI  6G-SDI / 3G-SDI  / HD-SDI /  SD-SDI Video PathologicalPatterns(Tx)

．Designed to transmit and receive ST 259M / 292M / 344M / 424M / 2082-1/ 2081-1 Video Signal

．Digital Diagnostic SFF-8472 Rev.10.3 Compliant (DDM Series )

．Duplex LC Receptacle Optical Interface

．Standard Small Form Factor Pluggable Package

．RoHs Compliant


Description

This transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a duplex SFP designed to transmit and receive optical signal in ST 2082-1 (12G-SDI), ST 2081-1 (6G-SDI), ST 424M (3G-SDI),ST292M (HD-SDI), ST 259M (SD-SDI)through two optical fibers. The module is equipped with a single high-speed laser diode provided as light source and a single PIN detector for receiver. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1.
