• 3G-SDI SFP 1T

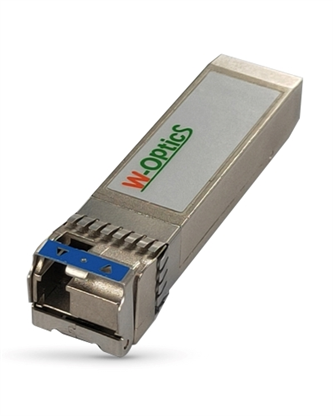

3G-SDI SFP 1T


Features

Standard Small Form Factor Pluggable Package

Simplex LC Receptacle Optical Interface

Digital Diagnostic SFF-8472 Rev.10.3 Compliant

Design to Transmitter the SMPTE 259M / 292M / 344M / 424M Video Signal

Support 3G-SDI / SD-SDI / HD-SDI Video Pathological Patterns

SMPTE 297-2006 Compliant

Single 3.3 V Power Supply

Serial ID through I2C Interface

Metal Enclosure and Low Power Consumption

RoHs Compliant


Description

This transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a single fiber optical module that designed by using high-speed laser diode provided as light source. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1.
