Description

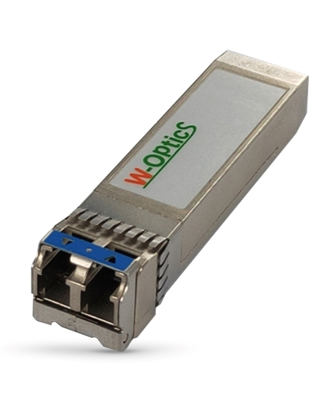

This CWDM transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a CWDM duplex SFP designed to transmit and receive optical signal inST 424M (3G-SDI),ST292M (HD-SDI), ST 259M (SD-SDI) through two optical fibers. The module is equipped with two high-speed laser diodes provided as light source. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1.
