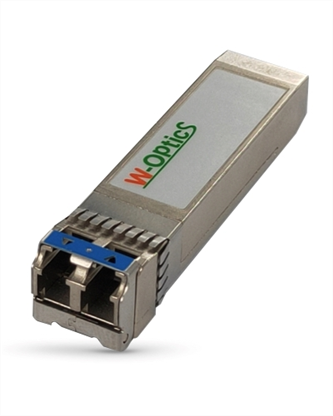

12G-SDI SFP+ 2R


Features

Standard Small Form Factor Pluggable Package

Duplex LC Receptacle Optical Interface

Digital Diagnostic SFF-8472 Rev.10.3 Compliant

Designed to receive ST 259M / 292M / 344M / 424M / 2082-1/ 2081-1 Video Signal

Support 12G-SDI  6G-SDI / 3G-SDI  / HD-SDI /  SD-SDI Video Pathological Patterns

Single 3.3 V Power Supply

Serial ID through I2C Interface

Metal Enclosure and Low Power Consumption

RoHs Compliant


Description

 This transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a duplex SFP designed to receive optical signal in ST 2082-1 (12G-SDI), ST 2081-1 (6G-SDI), ST 424M (3G-SDI),ST292M (HD-SDI), ST 259M (SD-SDI) through two optical fibers. The module is equipped with two PIN detectors for receivers. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol.
