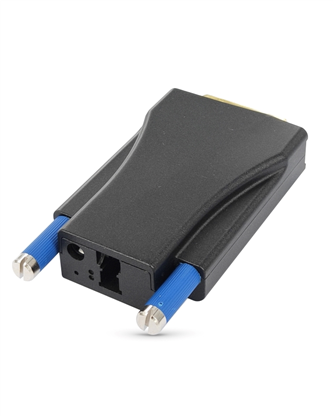

1 Port Optical DVI Extender


Features

．Compact Size for Optical DVI Extender (HxWxD : 15.6mm x 40.5mm x 67.2mm )

．Single LC Receptacle Optical Interface

．Single-Mode and Multi-Mode Fiber Application

．Support Long Distance and High Resolution Image Transmission

．Support Video Resolution up to 1920x1200 / 60Hz or 1080p for HD TV

．Self-EDID Programming Feature

．Indicate the Transmit and Receiver Signal Status

．Single 5 V Power Supply

．Metal Enclosure and Low Power Consumption

．RoHS Compliant


Description

The WDx-1801-M Optical DVI Extender is designed to transmit the DVI signals to long distance through single fiber. It can be used not only multi-mode fiber but also single-mode fiber as system’s requirement. The EDID learning technology makes WDx-1801-M more flexible and easier to installation for any variable resolution display. This Extender integrates all LED indicators, power supply input and Self-EDID button hole on the front panel. It will be easy and convenient to indicate the link status and to operate module
