Dual-Link DVI Extender


Features

Compact Size for Optical DVI Extender (HxWxD : 15.6mm x 40.5mm x 67.2mm )

Single LC Receptacle Optical Interface

Single-Mode and Multi-Mode Fiber Application

Support Long Distance and High Resolution Image Transmission

Support Video Resolution up to 1920x1200 @60Hz or 1080p using Single Link / up to 2560x1600 @60Hz using Dual Link

Self-EDID Programming Feature

Indicate the Transmit and Receiver Signal Status

Single 5 V Power Supply

Metal Enclosure and Low Power Consumption

RoHS Compliant


Description

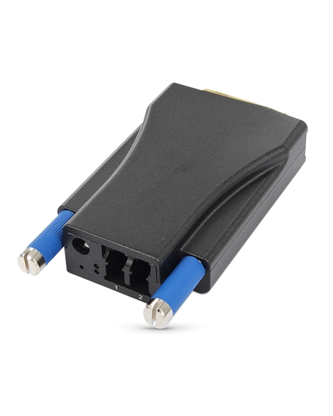

The WKx-9802-M Optical DVI Extender is designed to transmit the DVI signals to long distance through two fibers. It can be used not only multi-mode fiber but also single-mode fiber as system’s requirement. The EDID learning technology makes WKx-9802-M more flexible and easier to installation for any variable resolution display. This Extender integrates all LED indicators, power supply input and Self-EDID button hole on the front panel. It will be easy and convenient to indicate the link status and to operate module.
