• SFF 2T Duplex

SFF 2T Duplex


Feature

. Compliant with SFF transceiver MSA specification

. Compliant with Specification for IEEE 802.3z 1000 BASE –SX compliant

. 3.3V Power Supply

. 2x5 SFF SMA compliant package

. Duplex LC connector dual transmitter units absolute in the module

. 100 ohms differential AC coupled CML input

. LVTTL Transmitter Disable function input

. Class 1 Laser Safety/IEC-60825 Compliant

. ROHS Compliant


Description

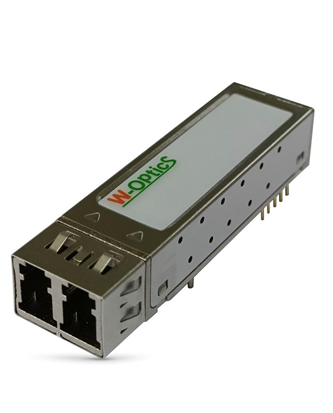

W-Optics SFF dual optical transmitters is specifically designed for optical networking application with MMF. It provides high optical and electrical performance with quite cost-effective design, which meeting customers’ all considerations.

This dual optical transmitters are fully compliant to the standard MSA SFF with LC optical connector. Its single power supply voltage is +3.3V DC and its TX input high speed data are differential AC coupled TX data interface (50ohms to ground, 100ohms line to line) are CML compatible. This dual optical transmitter also supports LVTTL level transmitter disable (TX-Disable) function
