Description

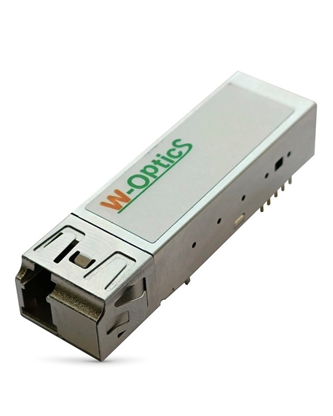

W-Optics SB1-xDK1-1A1 2x5 SFF dual optical transmitters is specifically designed for optical networking application operating at 3.125Gbps with link distance up to 100m for 62.5/125um MMF. It provides high optical and electrical performance with quite cost-effective design, which meeting customers’ all considerations.

The SB1-xDK1-1A1 dual optical transmitters are fully compliant to the standard MSA SFF with LC optical connector. Its single power supply voltage is +3.3V DC and its TX input high speed data are differential AC coupled TX data interface (50ohms to ground, 100ohms line to line) are CML compatible. This dual optical transmitter also supports LVTTL level transmitter disable (TX-Disable) function.
