• BiDi SFF 2R Simplex

BiDi SFF 2R Simplex


Feature

. Compliant with SFF transceiver MSA specification

. Compliant with Specification for IEEE 802.3z 1000 BASE –SX compliant

. 3.3V Power Supply

. 2x5 SFF SMA compliant package

. Simplex LC connector dual transmitter units absolute in the module

. 100 ohms differential AC coupled CML input

. LVTTL Receiver Signal Detect Output

. Class 1 Laser Safety/IEC-60825 Compliant

. ROHS Compliant


Description

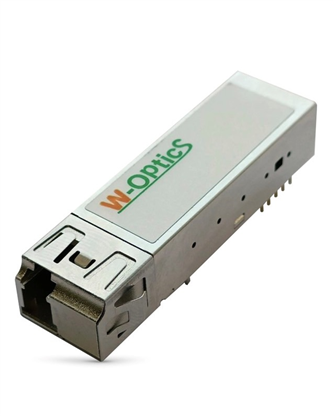

W-Optics SB2-xDK1-1A1 2x5 SFF dual optical receivers is specifically designed for optical networking application operating at 3.125Gbps with link distance up to 100m for 62.5/125um MMF. It provides high optical and electrical performance with quite cost-effective design, which meeting customers’ all considerations.

The SB2-xDK1-1A1 dual optical receivers are fully compliant to the standard MSA SFF with LC optical connector. Its single power supply voltage is +3.3V DC and its RX output high speed data are differential AC coupled RX data interface (50ohms to ground, 100ohms line to line) are CML compatible. This dual optical receiver supports LVTTL level signal detect (RX_SD) function.
