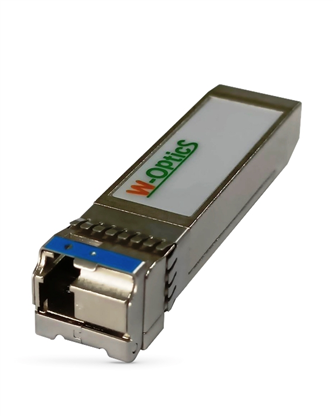

12G-SDI CWDM 1Transmitter


Features

．Standard Small Form Factor Pluggable Package

．Simplex LC Receptacle Optical Interface

．Digital Diagnostic SFF-8472 Rev.10.3 Compliant

．Designed to transmitST 259M / 292M / 344M / 424M/2082-1/ 2081-1Video Signal

．Support CWDM 12G-SDI / 6G-SDI / 3G-SDI  / HD-SDI /  SD-SDI Video Pathological Patterns

．SMPTE 297-2006 Compliant

．Single 3.3 V Power Supply

．Serial ID through I2C Interface

．Metal Enclosure and Low Power Consumption

．RoHs Compliant


Description

This CWDM transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug appliThis transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is a CWDM simplex SFP designed to transmitoptical signal inST 2082-1 (12G-SDI), ST 2081-1 (6G-SDI), ST 424M (3G-SDI), ST292M (HD-SDI), ST 259M (SD-SDI) through one optical fiber. The module is equipped with one high-speed laser diode provided as light source. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1
