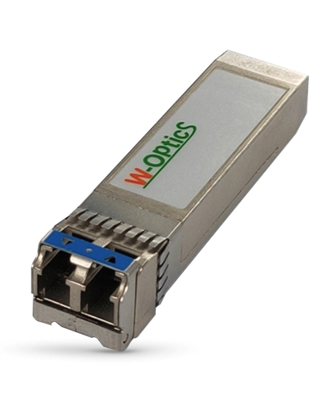

• 12G-SDI CWDM 1T1R Transceiver

12G-SDI CWDM 1T1R Transceiver


Features



．Standard Small Form Factor Pluggable Package

．Duplex LC Receptacle Optical Interface

．Digital Diagnostic SFF-8472 Rev.10.3 Compliant

．SMPTE ST2082-1/ST2081-1/ST424/ST344/ST292/ST259compliant

．Support 12G-SDI / 6G-SDI / 3G-SDI  / HD-SDI /  SD-SDI Video PathologicalPatterns

．Single 3.3 V Power Supply

．Serial ID through I2C Interface

．Metal Enclosure and Low Power Consumption

．RoHs Compliant


Descriptions

      This transceiver complies with Small Form Factor Pluggable (SFP) connector to allow hot plug application. It is afiber optical module that designed by using high-speed laser diode provided as light source and a single PIN detector for receiver. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with Class 1 laser products and EN60825-1.
