Description

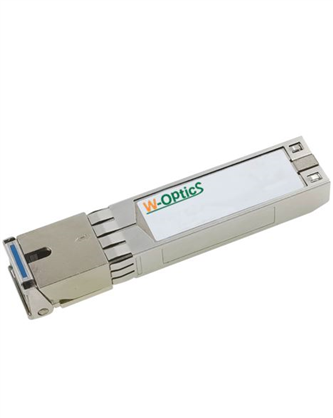

The series of transceivers comply with Enhanced Small Form Factor Pluggable (SFP+). It is designed for single-mode fiber application with high performance and cost-effective. Each module consists of the high-speed EML laser diode and avalanche photo diode as a light source and a detector. An EEPROM containing the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with the laser class 1 products and EN60825-2.



Table for XGSPON OLT Product

Product	Model Name	Data Rate (Gbit/s)	Class	TX	RX	Optical Power (dBm)	Sensitivity (dBm)	Operating Temperature
XGSPON OLT	SW8-xx41-713	10/10, 2.5	N1/N2	1577nm	1270nm	+2 ~ +5 +4 ~ +7	-28 -28	-5 ~ +70C -40 ~ +85C
