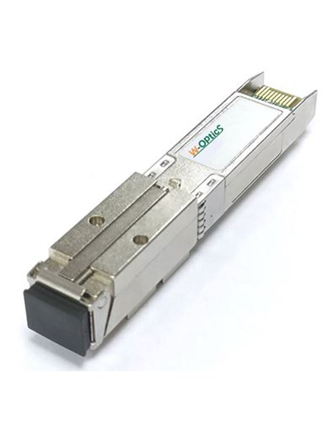

XGS PON ONU Stick


Feature



. Support GPON/XGS-PON/NGPON2 Standards with MAC Function

. Simplex SC/APC Receptacle Optical Interface

. ITU-T G.9807 XGS-PON ONU Compliant

. 1270nm DML DFB 9.953Gbps Transmitter

. 1577nm APD 9.953Gbps Receiver with High Sensitivity

. Support 20 km transmission distance with SMF

. Single 3.3 V Power Supply

. CML Data Input and Output Interface

. Low power dissipation < 2.5 W

. Low EMI and excellent ESD protection

. ComplieswithITU-TG.987.2, 9807.1 and G.9807.2

. RoHS-6 Compliant


Description

The series of transceiver sticks comply with Enhanced Small Form Factor Pluggable (SFP+). It is designed for single-mode fiber application with high performance and cost-effective. Each module consists of the high-speed laser diode and avalanche photo diode as a light source and a detector. An EEPROM containing the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with the laser class 1 products and EN60825-1.



Table for XGSPON ONU Sticks

Product Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating Temperature
XGSPON ONU Stick SW7-xJ81-S14 10/10 20km

1270nm

1577nm

+4.0 ~ +9.0

 -29

0 ~ +70C

-40 ~ +85C
