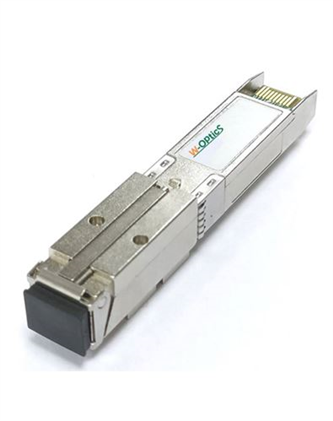

GPON ONU Stick


Features



. Standard Small Form Factor Pluggable Package MSA Compliant

with GPON MAC Function

. Singlefiber bi -directionaldatalinksasymmetricTX1.244Gb/s/RX2.488Gb/sapplication

. Simplex SC/APC Receptacle Optical Interface

. ITU-T G.984.2 Compliant

. Single 3.3 V Power Supply

. Low power dissipation< 2.8W

. Highpower1310nmDMLDFBLDandhighsensitivity1490nmSTIA

. CML Data Input and Output Interface

. Digital diagnostic monitorinterface

. RoHS-6 Compliant


Descriptions

The series of transceivers comply withSmall Form Factor Pluggable (SFP). It is designed for single-mode fiber application with high performance and cost-effective. Each module consists of the high-speed laser diode and STIA photo diode as a light source and a detector. An EEPROM containing the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with the laser class 1 products.



Table for GPON ONU Sticks

Product Model Name Data Rate
(Gbit/s)		 Reach TX RX  Optical Power
(dBm)		 Sensitivity
(dBm)		 Operating Temperature
GPON ONU Stick S8N-xF81-S14 1 / 2.5 20km

1310nm

1490nm

+0.0 ~ +5.0

 -28

0 ~ +70C

-40 ~ +85C
